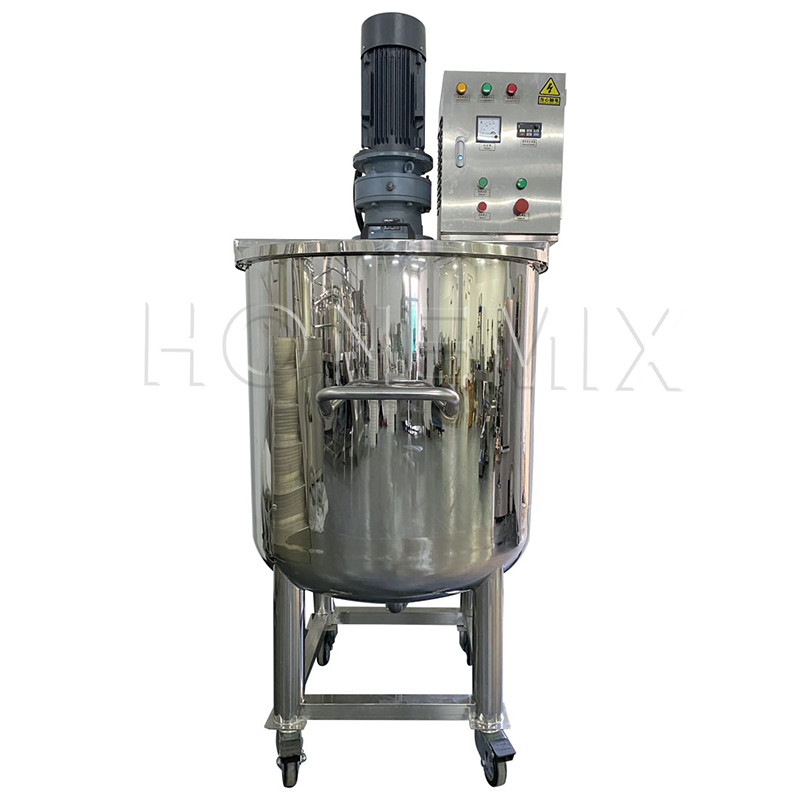

316 Stainless steel Chemical Liquid Solution Mixer Tank
Liquid Fertilizer Mixer

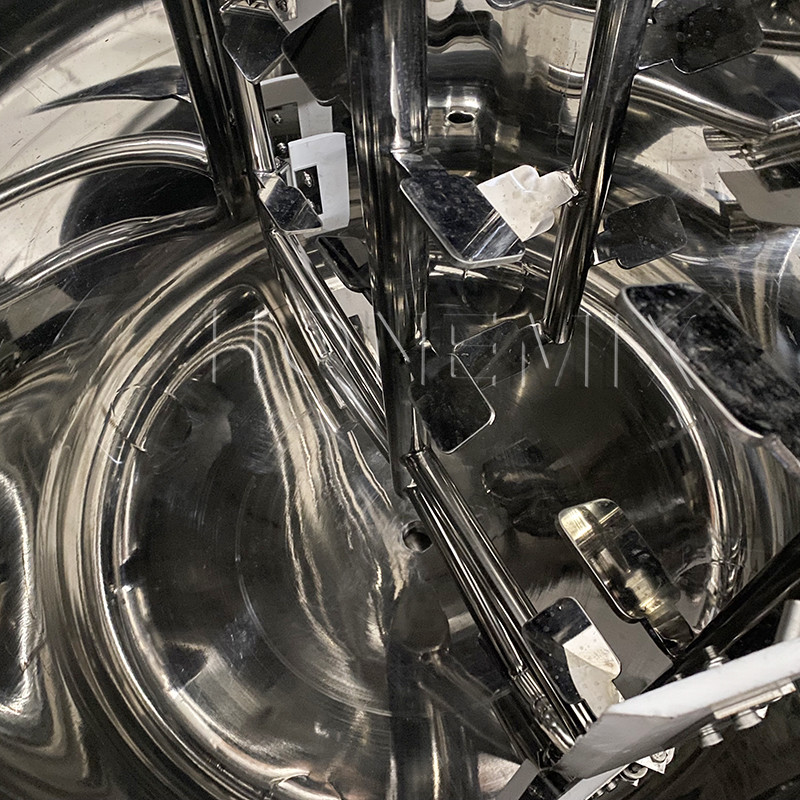

Our Mixer Vessel can use for dishwashing, hand washing, liquid soap, liquid detergent, shampoo, hair conditioner etc. The mixer tank can be made for 3 Layer or Single Layer according customer's need. The heating method can be electric heating or steam heating, and the temperature can be set according to the different products formula. Bottom homogenizer can be optional. The top agitator designed with wall scraper mixer to enhance the mixing efficiency.
Features
Bath gel shampoo making machine, liquid chemical mixers, liquid soap production line has high speed disperser, mixing and disperse viscously, solid and liquid etc. various kind of raw material will be dissolve which is such as AES, AESA LSA, during liquid production which can save energy consumption and shorten production the and shorten production period
Main adopts steeples timing device which reduce babble occur under low temperature and high viscosity condition less air bubble will be formed
To produce liquid washing products, like shampoo, liquid soap, bath shower, dish washing, hand washing, lubricating oil, etc.

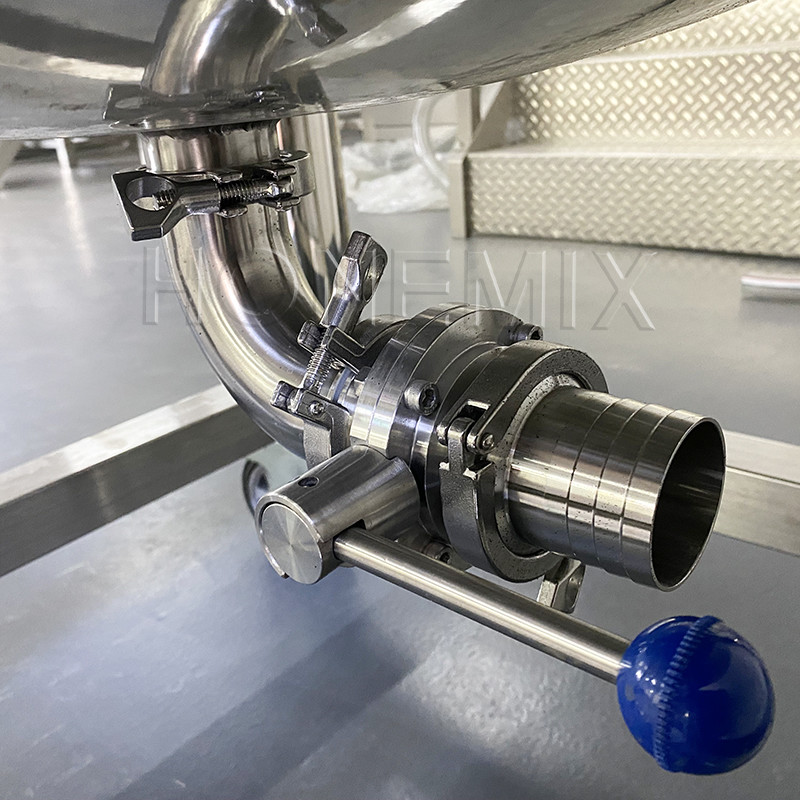

Finished products can be discharged by valve or match a screw pump
Other Option
Technical Parameters
| Capacity(L) |
Mixing Power
(KW)
|
Mixing Speed
(RPM)
|
Homogenizer Power((KW) |
Homogenizer Speed(RPM) |
Heating way |
| HHM-100L |
0.75 |
0-65 |
2.2 |
0-3600 |
Electric/ Steam Heating |
| HHM-200L |
1.5 |
0-65 |
3 |
0-3600 |
| HHM-300L |
2.2 |
0-65 |
4 |
0-3600 |
| HHM-500L |
2.2 |
0-65 |
5.5 |
0-3600 |
| HHM-1000L |
4 |
0-65 |
11 |
0-3600 |
| HHM-2000L |
5.5 |
0-65 |
15 |
0-3600 |
| HHM-3000L |
7.5 |
0-65 |
18.5 |
0-3600 |
| HHM-5000L |
11 |
0-65 |
22 |
0-3600 |
Applications
1. Cosmetics industry: skin care cream, shaving cream, shampoo, toothpaste, cold cream, cold sun cream, facial cleanser, nutrition dense, detergent, shampoo, hair cream, conditioner, serum, moisturizing cream, Hand cream and so on.
2. Daily chemical industry:
Laundry liquid production, hand sanitizer, toilet net, car glass water.
3. Pharmaceutical Industry:
Latex, emulsion, ointment (ointment), oral syrup, oral liquid and the like.
4. Food Industry:
Sauces, cheese, nutritional liquid, baby food, chocolate, sugar and so on.
5. Chemical Industry:
Latex, Sauce, saponified products, paints, coatings, resins, adhesives, lubricants and so on.
