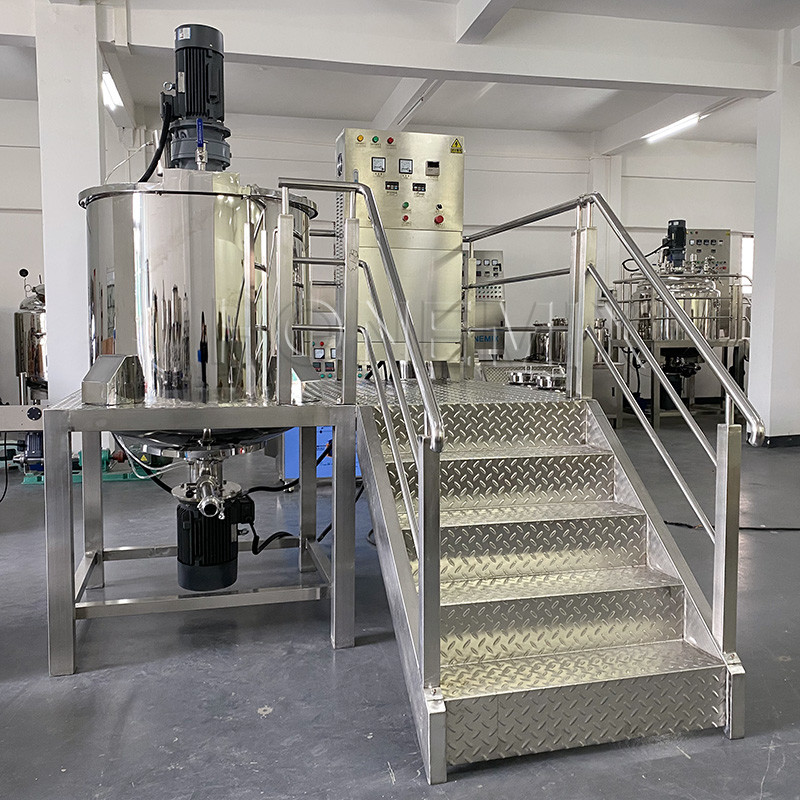

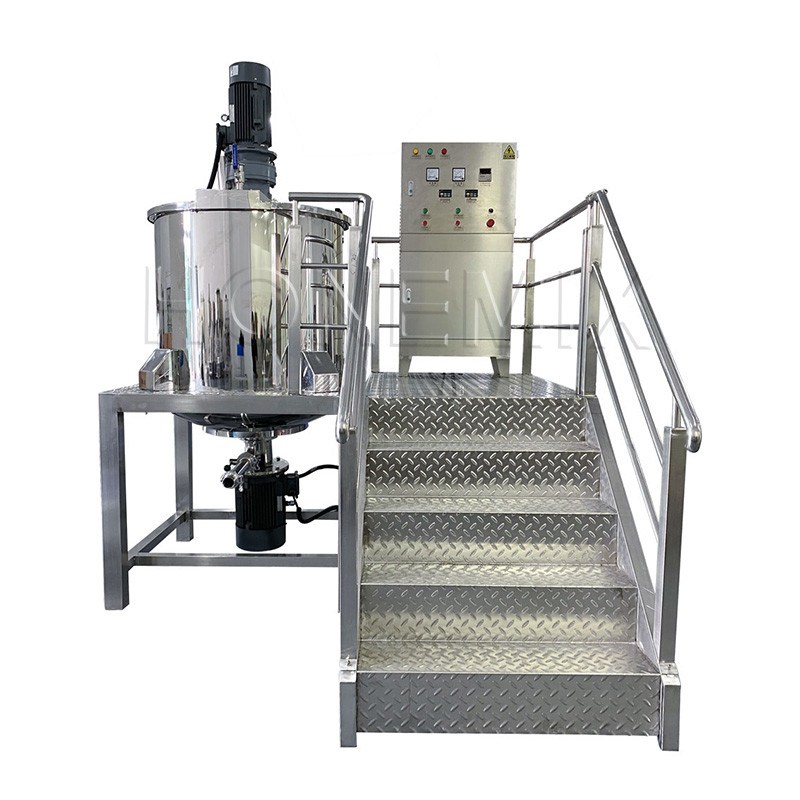

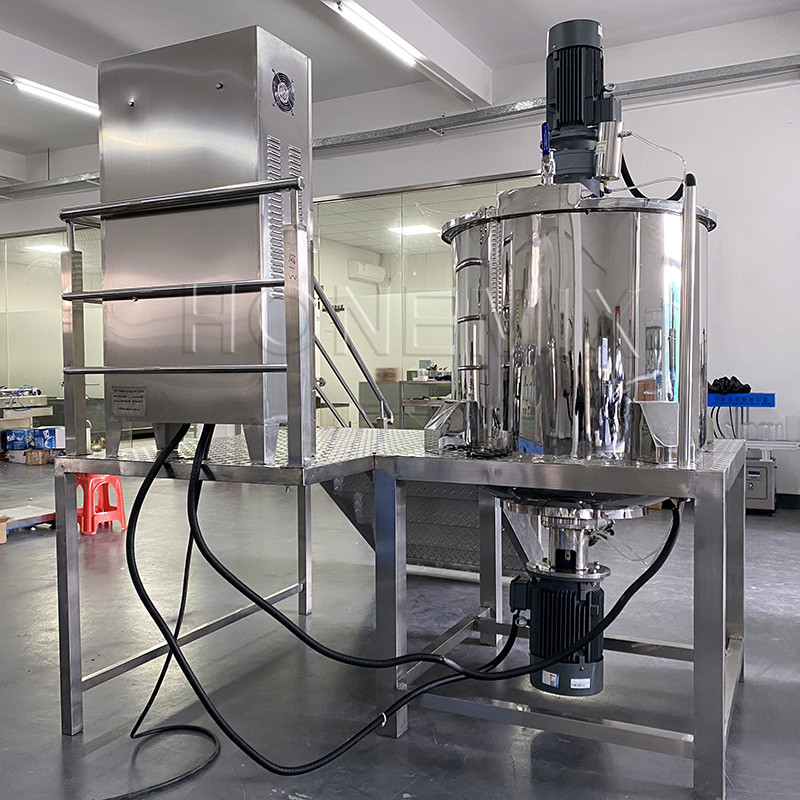

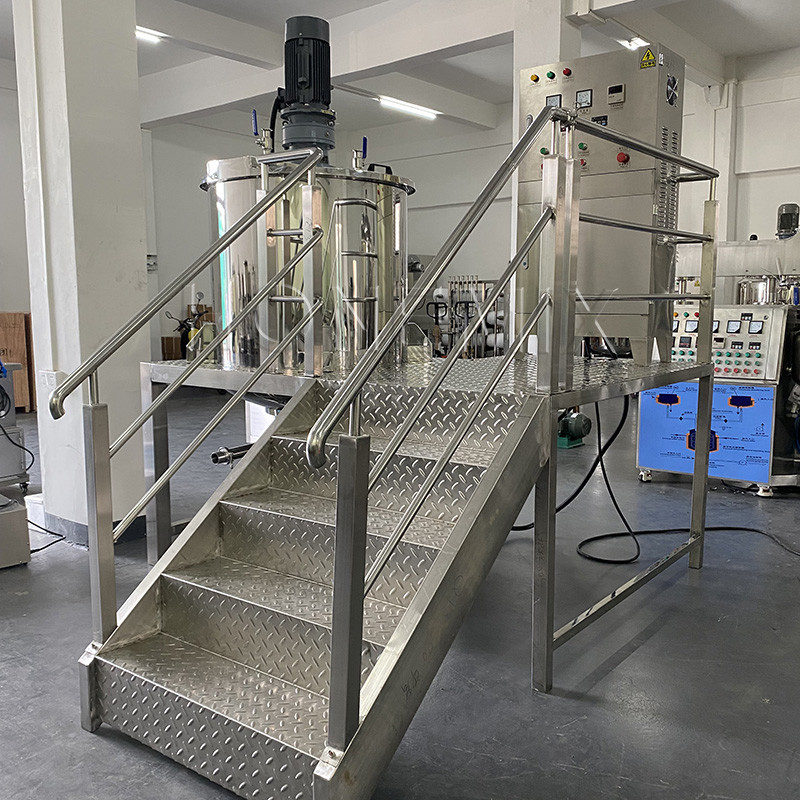

Single Layer Liquid Detergent Making Mixing Homogenizer Machine

Single Layer Mixer Machine

The all-round wall scraping mixing adopts the frequency converter for speed adjustment, so that high quality products of different processes according to customer requirements.

The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve many indissoluble materials such as AES, AESA, LSA, etc. during the liquid detergent production process so as to save energy consumption and shorten production period.

The liquid wash mixing tank body is welded by imported three-layer stainless steel plate.

The blending tank body and the pipes adopt mirror polishing, which fully conforms to GMP requirements.

Features

High quality top mixing motor controls the mixing paddle to mix the product evenly. The Mixing speed can be adjusted from 0-60 rpm. and in the same machine we add high sheaing bottom homogenizer which can be let the material into small mancule and makes the product tobe more delicate. Button control panel which is easy to operate after normal training.

• Made for 316l Stainless Steel, carried out mirror polishing
• Working Capacity: 1000L
• Blending with frequency conversion speed adjustment
• Control cabinet can supervise the operation of equipment, such as temperature and blending totation speed etc

Other Option

• movable type
• Working Capacity can be customized from 100L ~ 5000L
• Mixing Type
• Top/Bottom Homogenizer
• ABB/Siemens Motor
• Jacket Steam/Electric Heating
• PLC/Button Operation Controller
• Flowmeter
• Load Cell
• Voltage Customized

Technical Parameters

Applications

1. Cosmetics industry: skin care cream, shaving cream, shampoo, toothpaste, cold cream, cold sun cream, facial cleanser, nutrition dense, detergent, shampoo, hair cream, conditioner, serum, moisturizing cream, Hand cream and so on.

2. Daily chemical industry:

Laundry liquid production, hand sanitizer, toilet net, car glass water.

3. Pharmaceutical Industry:

Latex, emulsion, ointment (ointment), oral syrup, oral liquid and the like.

4. Food Industry:

Sauces, cheese, nutritional liquid, baby food, chocolate, sugar and so on.

5. Chemical Industry:

Latex, Sauce, saponified products, paints, coatings, resins, adhesives, lubricants and so on.
