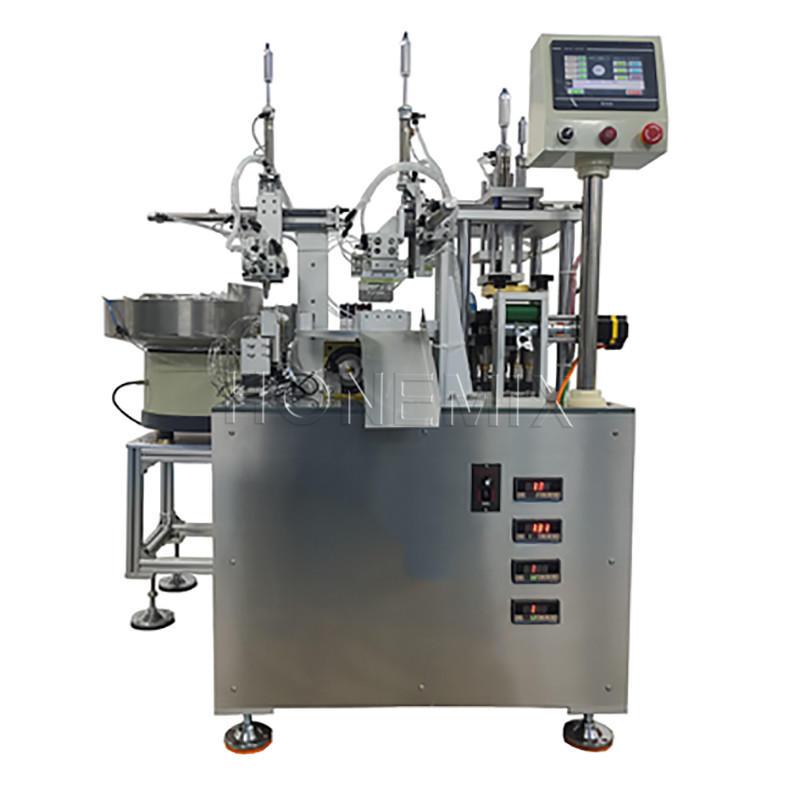

2ml - 5ml Essence Strips Disposable Ampoule Tube Filling and Sealing Machine

Plastic Ampoule Filling Sealing

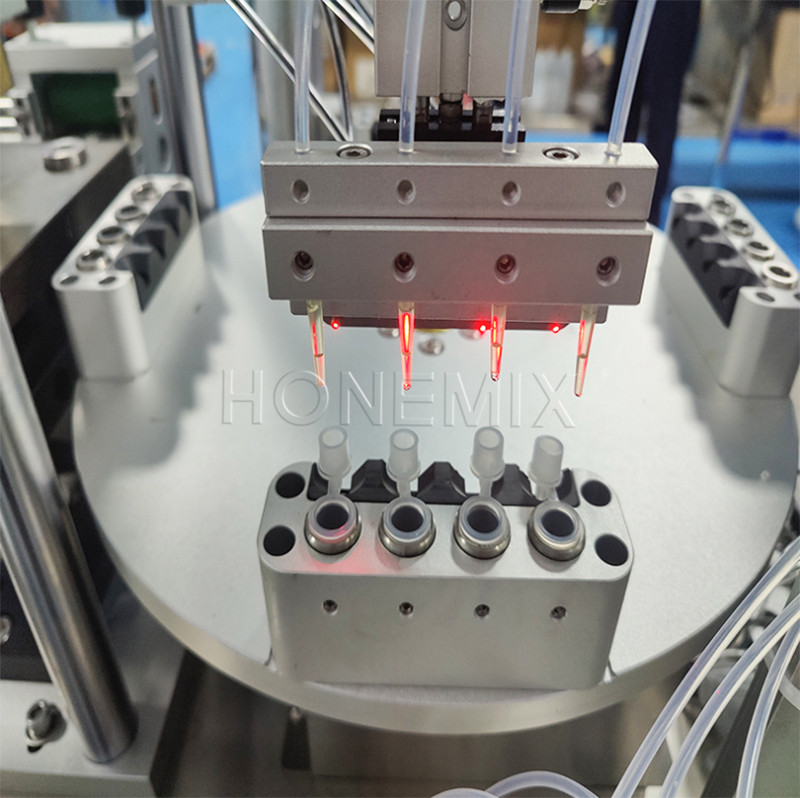

Ampoule Filling and Sealing Machine or ampoule filler machine perform filling sealing built on advanced technology to fulfill the requirement in Pharmaceutical Filling Industry. Ampoules are filed with liquid then purged with nitrogen gas and finally sealed using combustible gases. Machine is having specially designed filling pump for precise filling of liquid with neck centering during filling operation. Ampoule are sealed immediately after filling the liquid in order to avoid contamination. Machine made from high quality stainless steel 316L materials as per GMP requirements.

Machine having flexibility to fill seal ampoules of 1ml to 25ml capacity. Apart from that, machine has a unique filling capacity of 0.5ml to 25ml in single dosing. Operating on the volumetric piston-pumps type filling principle, the device can fill 10 to 250 ampoules per minute. Another unique advantage of this equipment is the availability of the dead-tray. It offers perfect diversion of the sealed and filled ampoules.

Features

• cGMP model
• Compact and vibration free structure.
• Suitable for filling 1ml to 20ml tube ampoules.
• Monobloc type design-Filling and sealing in one unit
• fill accuracy of +/- .5%.
• No Ampoule No Filling system
• Contact parts made from 316SUS
• One motor synchronizes with all drives of the unit
• 0.5ml to 25ml filling in single dosing.
• little maintenance & easy cleaning

Specification

Support and Services

We offer servicing and technical assistance for our Automatic Filling Machine. You can get assistance from our team of knowledgeable experts with any queries, worries, or problems you might be having.

Among the many services we provide are:

• Problem-solving
• Upkeep and fixation
• Setting up and installing
• Product details and recommendations
• Improvements and updates
