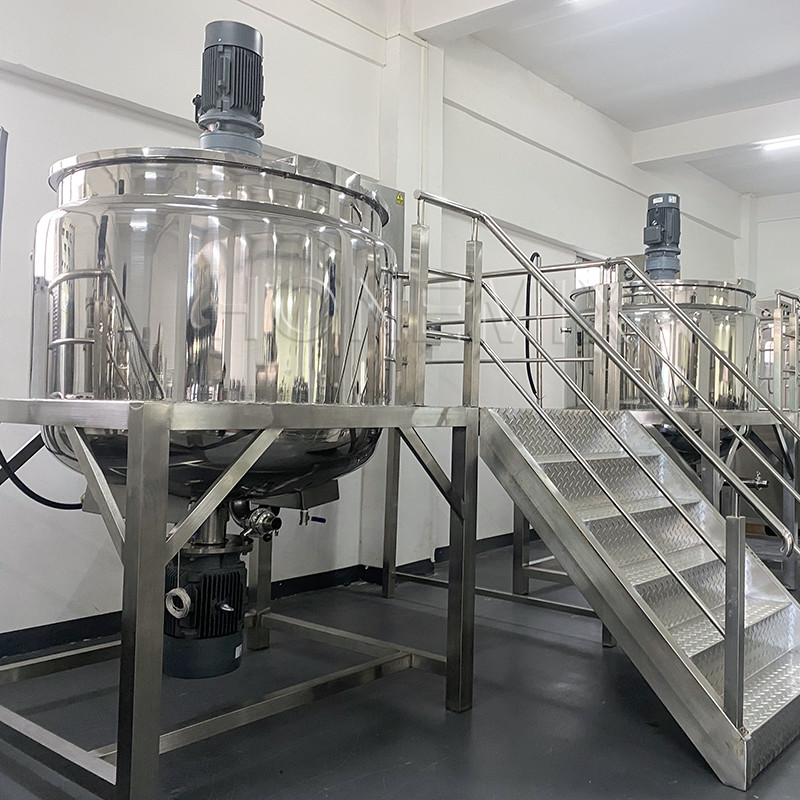

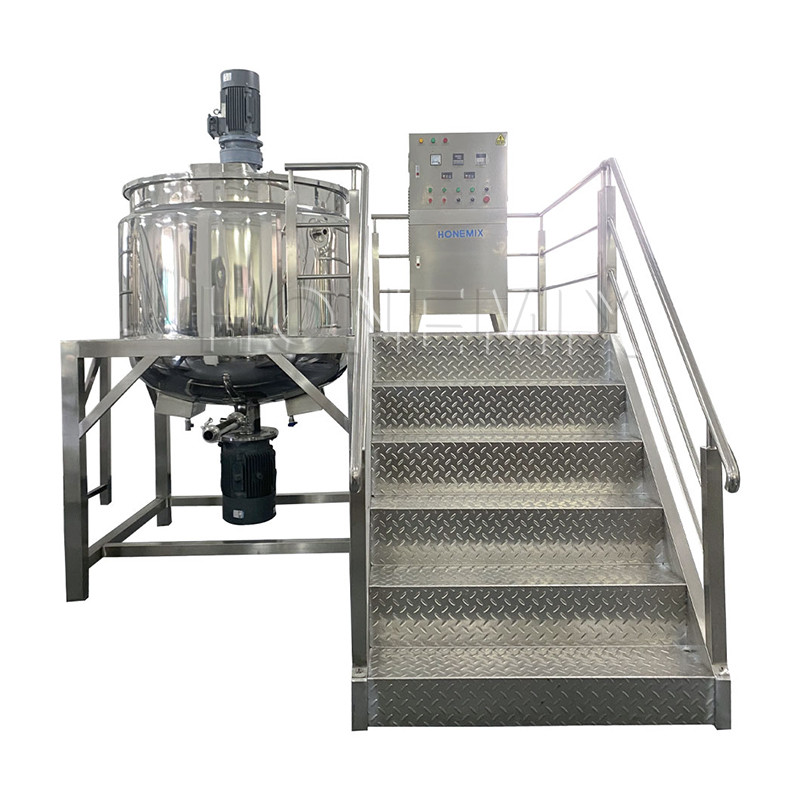

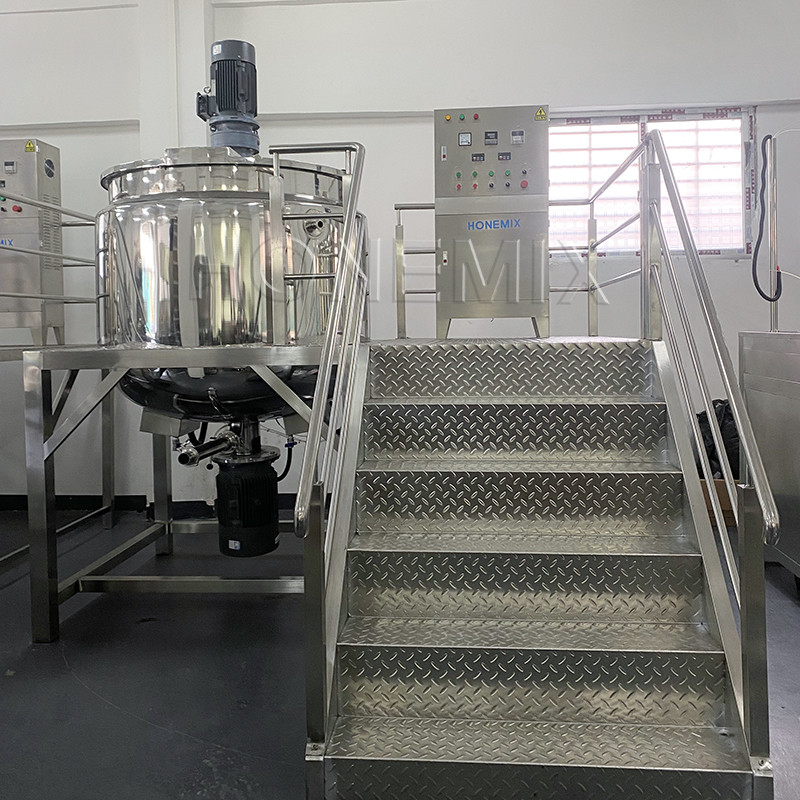

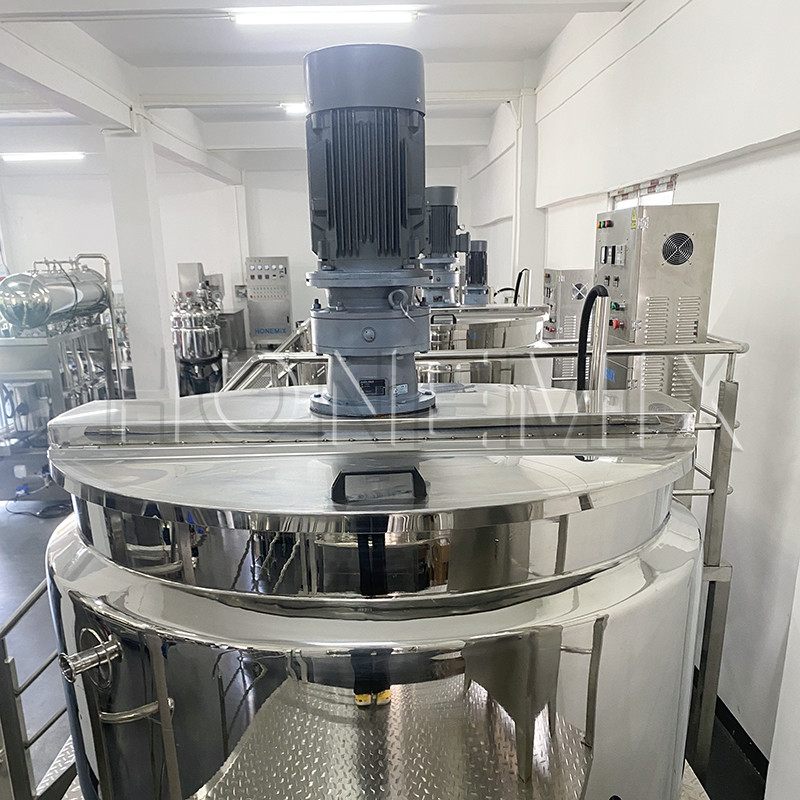

Double Jacket Stainless Steel Mixing Tank

Stainless Steel Mixing Tank  use for dishwashing, hand washing, liquid soap, liquid detergent, shampoo, hair conditioner etc. The mixer tank consists of 3 layers stainless steel. The heating method can be electric heating or steam heating, and the temperature can be set according to the different products formula. Bottom homogenizer can be optional. The top agitator designed with wall scraper mixer to enhance the mixing efficiency.

Features

High speed disperser .might mixing and disperse Viscously. Solid and liquid raw material can dissolve material which is hard to dissolve such as AES, AESA LSA during liquid production which can save energy consumption and shorten production the and shorten production period.

Main adopts steeples timing device which reduce babble occur under low temperature and high viscosity condition less air bubble will be formed to produce liquid washing products. Finished products can be discharged by Disc-valve or suitable to all liquid wash products.

The all-around wall scraping mixing adopts the frequency converter for speed adjustment, so that high quality products of
different processes according to customer requirements.

The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve many
indissoluble materials such as AES, AESA, LSA,etc.during the liquid detergent production period.

The pot body is welded by imported three-layer stainless steel plate. the tank body and the pipes adopt mirror polishing, which fully conforms to GMP requirements

According to customer requirement, the tank can heat and cool materials the heating way including steam heating and electric heating. easy to discharge, bottom direct discharge or by transfer pump.

Other Option

• movable type
• Working Capacity can be customized from 100L ~ 5000L
• Mixing Type
• Top/Bottom Homogenizer
• ABB/Siemens Motor
• Jacket Steam/Electric Heating
• PLC/Button Operation Controller
• Flowmeter
• Load Cell
• Voltage Customized

Technical Parameters

Applications

1. Cosmetics industry: skin care cream, shaving cream, shampoo, toothpaste, cold cream, cold sun cream, facial cleanser, nutrition dense, detergent, shampoo, hair cream, conditioner, serum, moisturizing cream, Hand cream and so on.

2. Daily chemical industry:

Laundry liquid production, hand sanitizer, toilet net, car glass water.

3. Pharmaceutical Industry:

Latex, emulsion, ointment (ointment), oral syrup, oral liquid and the like.

4. Food Industry:

Sauces, cheese, nutritional liquid, baby food, chocolate, sugar and so on.

5. Chemical Industry:

Latex, Sauce, saponified products, paints, coatings, resins, adhesives, lubricants and so on.
