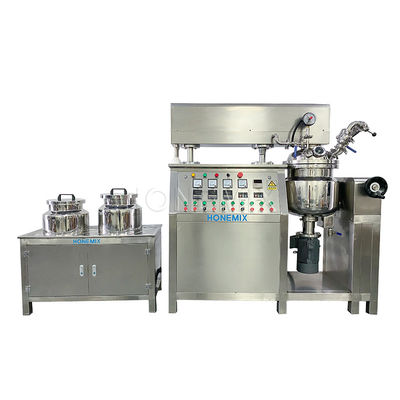

Lab Type Stainless Steel Vacuum Mixer Homogenizer For Making Cosmetics Cream

Vacuum Mixer Machine

Our Vacuum Mixer Machine with automatic feeding, discharging and cleaning systems hydraulic lifting and tilting systems as well as overall outlook design all compliance to GMP and FDA specifications.

Vacuum Homogenizer Mixing Machine is a high shear dispersion paste making system. It is to distribute one or more phases into another continuous phase efficiently, rapidly and evenly, but in general, each phase is incompatible with each other. Because of the high tangential velocity and the strong kinetic energy brought by the high frequency mechanical effect produced by the high speed rotation of the rotor, the material is subjected to strong mechanical and hydraulic shearing, centrifugal extrusion, liquid friction, impact tearing and turbulence in the narrow gap between the stator and the rotor, so that the immiscible solid, liquid and gas phases are under the combined action of the corresponding mature technology and appropriate additives. It evenly and finely disperses emulsification in an instant, and eventually obtains stable high-quality products through high-frequency circulation and reciprocation.

Features

• Working Capacity: 10-50L
• Top Frame Mixing with Speed adjustable

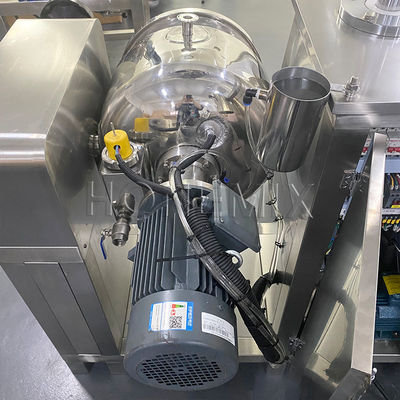

• Bottom Homogenizer with Speed adjustable
• Jacket cooling and heating
• Temperature adjustable
• Standard type match Oil and water tank

Other Option

• Fixed Type
• Working Capacity can be customized from 5L ~ 5000L
• Mixing Type: Homogenizer, Anchor, Spiral, Paddle
• Jacket Steam/Electric Heating
• PLC/Button Operation Controller
• Flowmeter
• Load Cell
• Voltage Customized
